DIN PLUGS AND RECEPTACLES
47

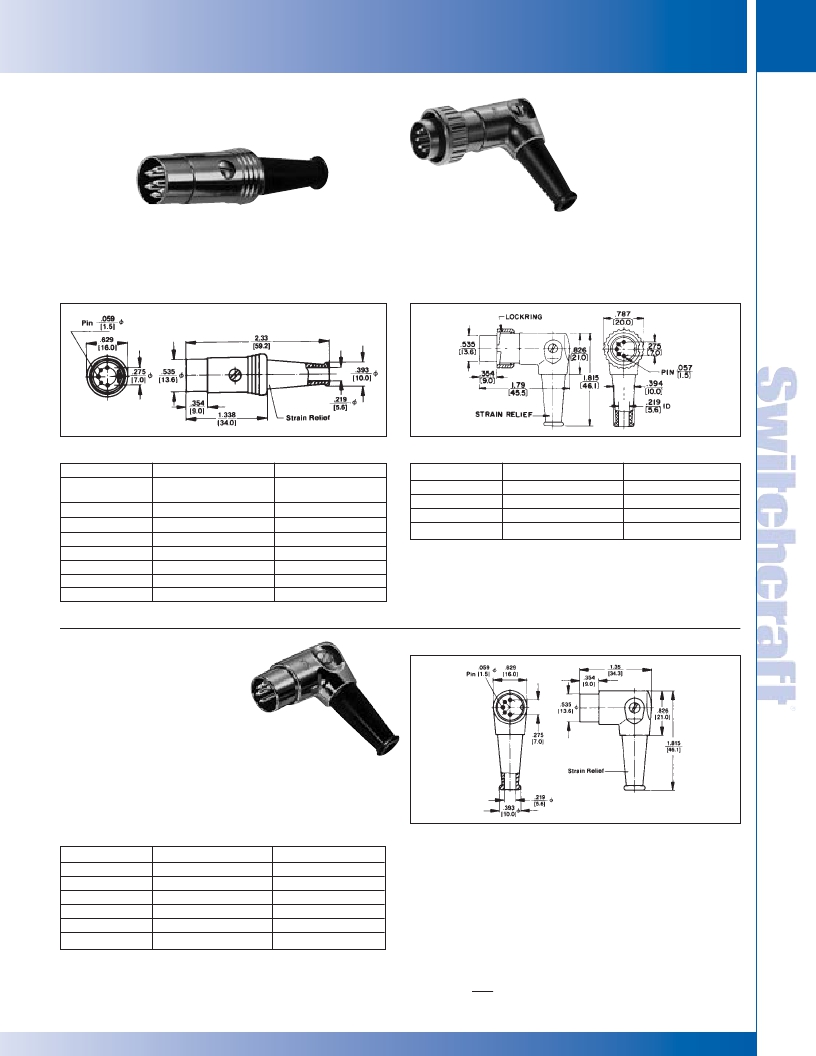

STRAIGHT CORD PLUG with Extended Barrel
TYPE 12BL6M – TYPICAL
Male plug with ground key-rib. Nickel-plated diecast handle.
Contact friction coupling. Flexible black strain relief. Heavy
duty cable clamp.
ORDERING INFORMATION
RIGHT-ANGLE CORD PLUG
with 8 Position Barrel and 30°
Lockring
TYPE 05YL5M – TYPICAL
Right-angle chassis hugging, male plug with flexible strain
relief. Unique 8-position barrel gives you a choice of any one
of eight different cable entry angles. ground key rib 30° turn
lockring securely fastens two halves of connector.
ORDERING INFORMATION
Part Number
? 03BL2M
? 05BL3M
? 05BL5M
? 09BL4M
Description
2 pins with insulated
switch actuator
3 pins at 180°
5 pins at 180°
4 pins at 210°
Pin Arrangement
1
2
5
3
Part Number
? 05YL3M
? 05YL5M
? 09YL4M
? 12YL5M
Description
3 pins at 180°
5 pins at 180°
4 pins at 210°
5 pins at 240°
Pin Arrangement
2
5
3
4
12BL5M
? 12BL6M
? 15BL7M
? 15BL8M
5 pins at 240°
6 pins at 240°
7 pins at 270°
8 pins at 270°
4
6
7
8
RIGHT-ANGLE CORD PLUG
with 8 Position Barrel
05DL5M shown
TYPE 05DL5M – TYPICAL
Right-angle chassis hugging, male plug with flexible black
rubber strain relief. Unique 8-position barrel offers a choice of
eight different cable entry angles.
ORDERING INFORMATION
Part Number
? 05DL3M
? 05DL5M
? 09DL4M
? 12DL5M
? 12DL6M
? 15DL7M
Description
3 pins at 180°
5 pins at 180°
4 pins at 210°
5 pins at 240°
6 pins at 240°
7 pins at 270°
Pin Arrangement
2
5
3
4
6
7
? Available on special order only; contact Switchcraft for price and delivery.
Inch
DIMENSIONS ARE FOR REFERENCE ONLY
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
